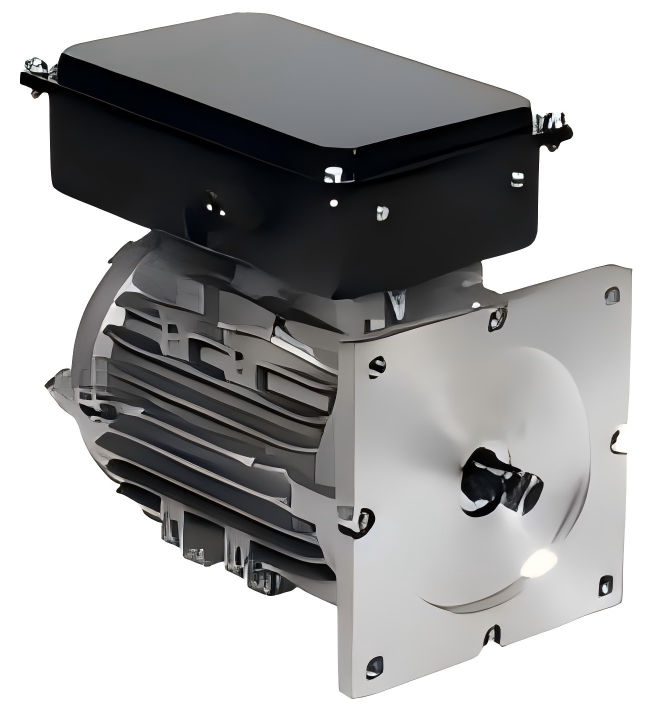

DC Brushed Motor
| 电机参数 Motor Data | 电机型号 Motor Model | ||||
|---|---|---|---|---|---|
| LV209 | |||||
| 额定功率 Nominal Power | W | 750 | |||
| 额定电压 Nominal Voltage | V | 115 | 115 | 230 | 230 |
| 额定电流 Nominal Current | A | 9.3 | 8.5 | 4.8 | 6.5 |
| 频率 Frequency | HZ | 50 | 60 | 50 | 60 |
| 额定转速 Nominal Speed | RPM | 2880 | 3470 | 2885 | 3480 |
| 效率 Rated efficiency | n% | 78 | 80 | 72.3 | 67.5 |
| 功率因数 Factor | cosϕ | 0.89 | 0.99 | 0.94 | 0.75 |
| 额定转矩 Nominal Torque | N.m | 2.5 | 2.1 | 2.5 | 2 |
| Tst/Tn | 1.8 | 1.8 | 1.8 | 1.8 | |
| Tmax/Tn | 2.5 | 2.5 | 2.5 | 2.5 | |
| Ist/In | 6.5 | 6.5 | 6.5 | 6.5 | |
| 电机设计 Motor Design | ||||
|---|---|---|---|---|
| 工作制 Duty Cycle | S2/S3 | |||
| 绝缘等级 Insulation Class | Class | B/F | ||
| 防护等级 IP Class | Class | IP54/IP55 | ||

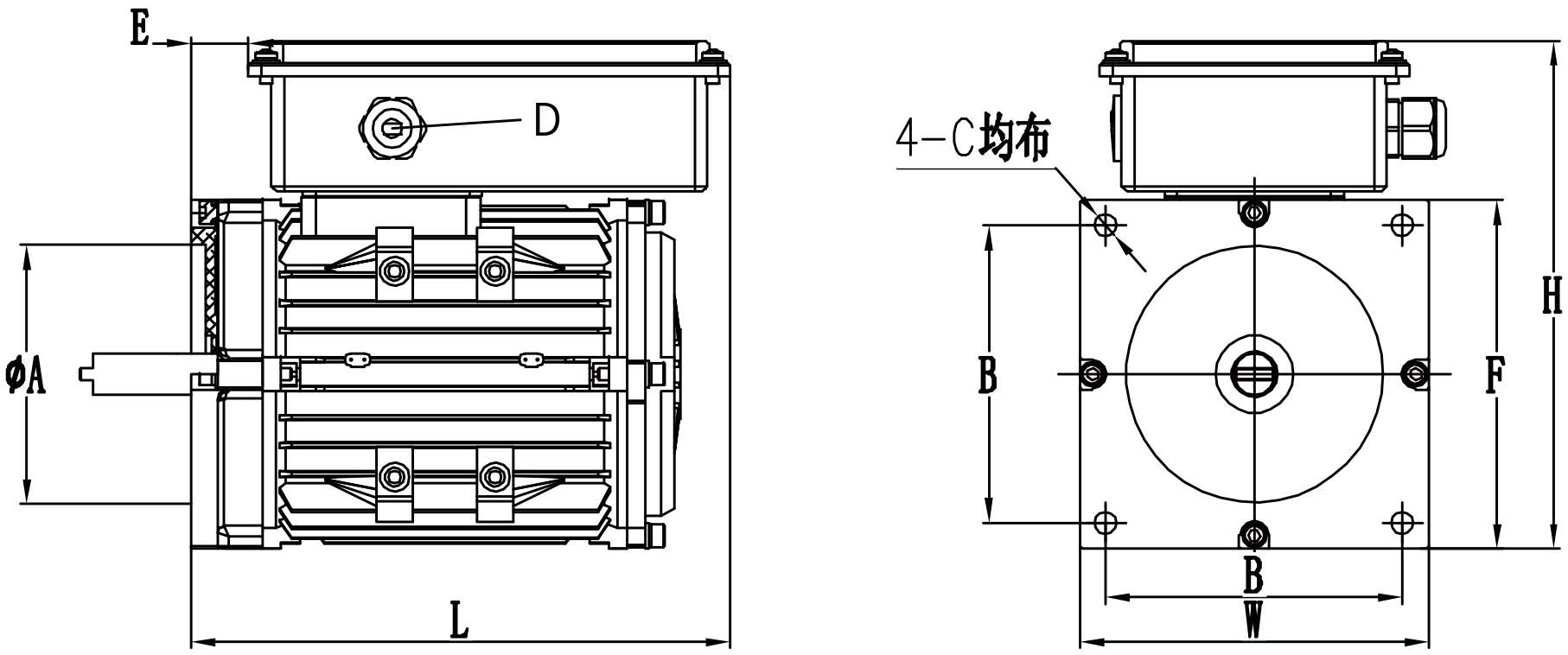

| 电机尺寸 Motor Dimension | L(mm) | 205 | ||
| W(mm) | 132/133 | |||
| H(mm) | 193 | |||
| 安装尺寸 Installation Dimensions | A(mm) | Φ98.3/Φ110 | ||
| B(mm) | 113*113/117*117 | |||
| C | M6/Φ7/Φ9 | |||
| D(mm) | M18*1.5/PG13.5/PG11 | |||
| E(mm) | 20 | |||
| F(mm) | 132/133 | |||
