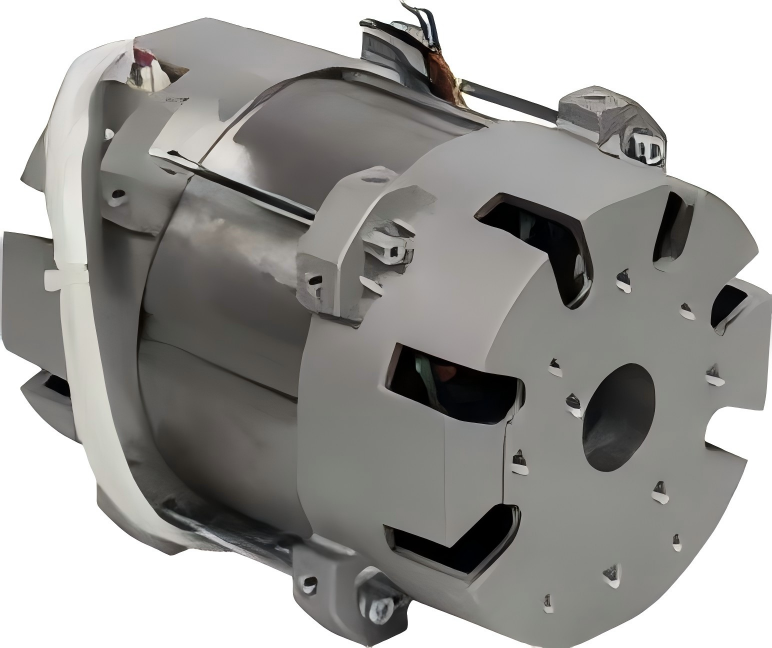

DC Brushed Motor
| 电机参数 Motor Data | 电机型号 Motor Model | ||||||
|---|---|---|---|---|---|---|---|
| LV812 | LV814 | LV816 | LV818 | LV820 | LV822 | ||
| 额定功率 Nominal Power | W | 1100 | 1500 | 2200 | 3000 | 4000 | 5500 |
| 额定电压 Nominal Voltage | V | 230/400 | 230/400 | 230/400 | 230/400 | 230/400 | 230/400 |
| 额定电流 Nominal Current | A | 4.7/2.7 | 6.1/3.5 | 9.1/5.2 | 12.9/7.3 | 16.8/9.6 | 22.7/13.1 |
| 频率 Frequency | HZ | 50 | 50 | 50 | 50 | 50 | 50 |
| 额定转速 Nominal Speed | RPM | 1379 | 1391 | 1365 | 1351 | 1353 | 1319 |
| 效率 Rated efficiency | n% | 71 | 75 | 74 | 72 | 73 | 71 |
| 功率因数 Factor | cosϕ | 0.82 | 0.82 | 0.82 | 0.82 | 0.82 | 0.81 |
| 额定转矩 Nominal Torque | N.m | 7.6 | 10.3 | 15 | 21.2 | 28.2 | 37.6 |
| Tst/Tn | 1.1 | 1.2 | 1.1 | 1.1 | 1.1 | 1.1 | |
| Tmax/Tn | 1.6 | 1.7 | 1.5 | 1.4 | 1.4 | 1.2 | |
| Ist/In | 3 | 3.3 | 3 | 3 | 3 | 2.6 | |
| 电机设计 Motor Design | |||||||
|---|---|---|---|---|---|---|---|
| 工作制 Duty Cycle | S3-10%/S3-15%/S3-20%/S3-30% | ||||||
| 绝缘等级 Insulation Class | Class | B/F | B/F | B/F | B/F | B/F | B/F |
| 防护等级 IP Class | Class | IP00 | IP00 | IP00 | IP00 | IP00 | IP00 |

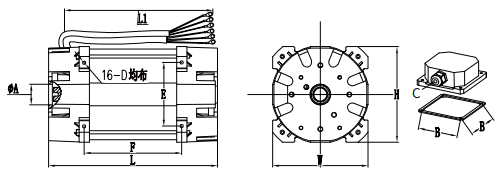

| 电机尺寸 Motor Dimension | L(mm) | 168 | 183 | 198 | 218 | 243 | 268 |
| W*H(mm) | 138*138 | 138*138 | 138*138 | 138*138 | 138*138 | 138*138 | |
| L1(mm) | 1100 | 1100 | 1100 | 1100 | 1100 | 1100 | |
| 安装尺寸 Installation Dimensions | A(mm) | Φ30 | Φ30 | Φ30 | Φ30 | Φ30 | Φ30 |
| B*B(mm) | 84*84 | 84*84 | 84*84 | 84*84 | 84*84 | 84*84 | |
| C | M18*1.5/M20*1.5/PG13.5 | ||||||
| D | M6 | M6 | M6 | M6 | M6 | M6 | |
| E(mm) | 92 | 92 | 92 | 92 | 92 | 92 | |
| F(mm) | 65 | 80 | 95 | 115 | 140 | 165 | |
