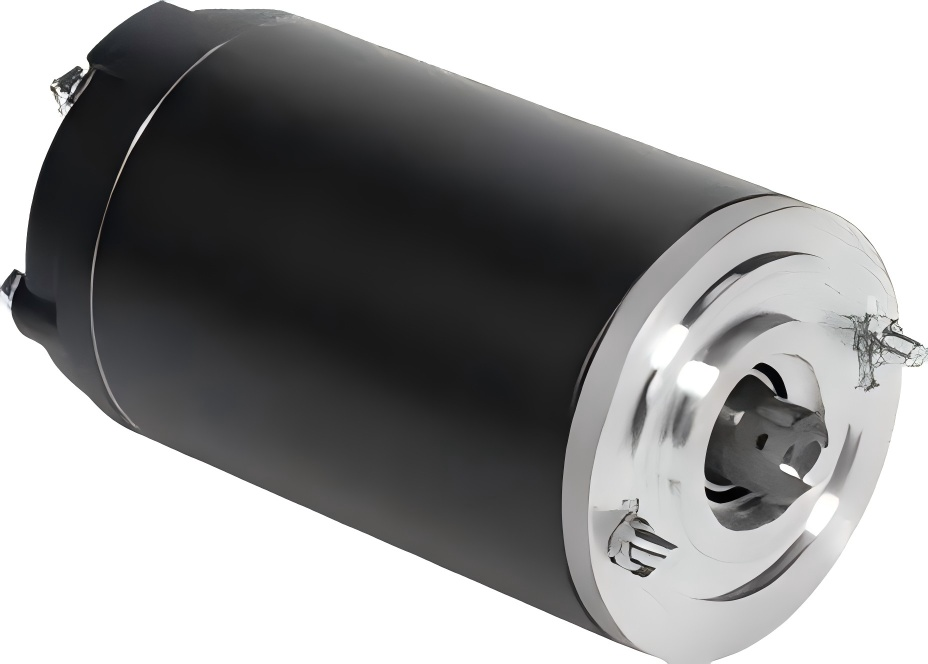

DC Brushed Motor
| 电机参数 Motor Data | 电机型号 Motor Model | |||||
|---|---|---|---|---|---|---|
| ZD071 | ZD075 | ZD008 | ZD112 | ZD102 | ||
| 额定功率 Nominal Power | kW | 0.5 | 0.8 | 0.8 | 0.5 | 0.8 |
| 额定电压 Nominal Voltage | V | 12 | 12 | 24 | 48 | 48 |
| 环境温度 Environmental Tempeature | °C | -20-40°C | -20-40°C | -20-40°C | -20-40°C | -20-40°C |
| 空载转速 No-load Speed | Rpm | 4200 | 4800 | 4600 | 3600 | 4600 |
| 空载电流 No-load Current | A | 10 | 14 | 5 | 2 | 2.5 |
| 额定负载 Nominal Torque | N.m | 2 | 2 | 2 | 2 | 2 |
| 额定转速 Nominal Speed | Rpm | 2300 | 3400 | 3100 | 2500 | 3100 |
| 额定电流 Nominal Current | A | 72 | 90 | 42 | 16 | 23 |
| 工作制 Duty Cycle | S2 | 2.5MIN | 2MIN | 2MIN | 2MIN | 2.5MIN |
| S3 | 10%ED | 10%ED | 10%ED | 10%ED | 10%ED | |
| 电机转向 Motor Rotation | CW/CCW | CW | CCW | CW | CW | CW |
| 电机噪音 Motor Noise | dBA/1m | 68 | 68 | 68 | 68 | 68 |
| 电机尺寸 Motor Dimension | L（ mm） | 137 | 137 | 137 | 137 | 137 |
| D（ mm） | 79 | 79 | 79 | 79 | 79 | |
| 电机重量 Motor Weight | Kg | 2.6 | 2.6 | 2.6 | 2.6 | 2.6 |
| 电机设计 Motor Design | 电机型号 Motor Model | |||||
|---|---|---|---|---|---|---|
| ZD071 | ZD075 | ZD008 | ZD112 | ZD102 | ||
| 绝缘等级 Insulation Degree | Class | F | F | F | F | F |
| 温控 Thermal Protection | Optional | √ | √ | √ | √ | √ |
| 防水等级 IP Class | Class | IP54 | IP54 | IP54 | IP54 | IP54 |
| 励磁方式 Excitation | Wound | 永磁PM | 永磁PM | 永磁PM | 永磁PM | 永磁PM |
| 振动 Vibration | mm/S | <1.6 | <1.6 | <1.6 | <1.6 | <1.6 |
| 绝缘强度 Insulation Resistance | MΩ | >10 | >10 | >10 | >10 | >10 |
| 电机寿命 Motor Endurance | Hrs | 400 | 400 | 400 | 400 | 400 |
