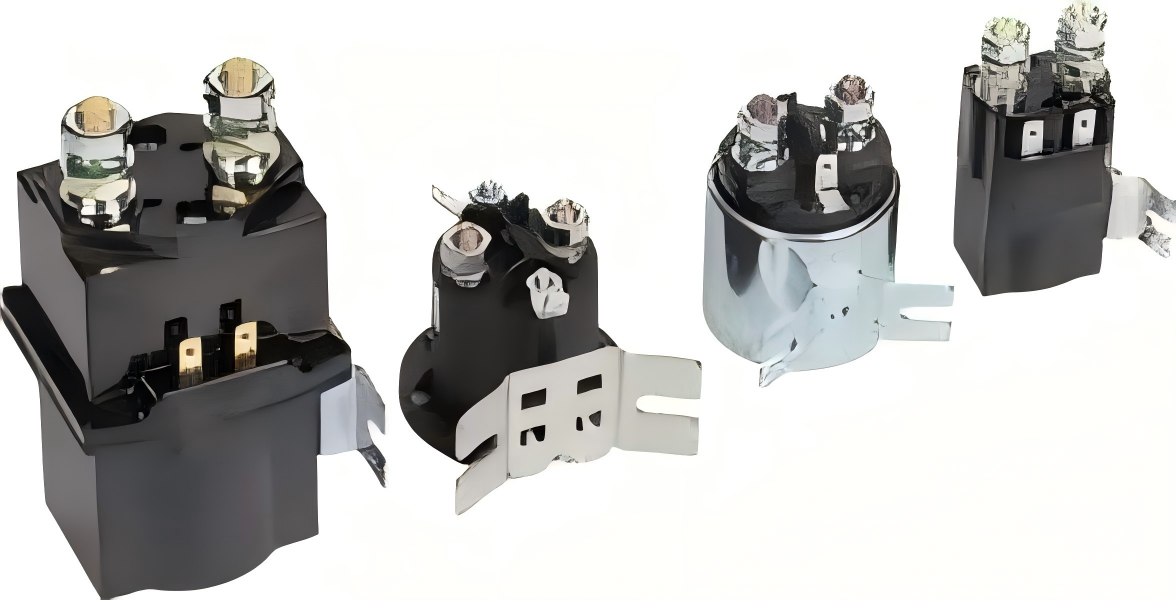

DC Brushed Motor
| 电机参数 Motor Data | 电机型号 Motor Model | |||||||
|---|---|---|---|---|---|---|---|---|
| ZJWP100A-12V | ZJWP400A-24V | CZ1-C2-12V | CZ1-C2-24V | ARD1353-12V | ARD1353-24V | SW390-12LL-12V | ||
| 开关工作时间(INT) Switch working time (INT) | 最大持续占空比 25%/最大工作时间6分钟 MaxS3-25%/Max S2-6min Maximum continuous duty cycle 25%/maximum working time 6 minutes MaxS3-25%/Max S2-6min |
|||||||
| 吸合电压(VDC)≤60%V Pull in voltage (VDC) ≤ 60% V | V | ≤8.4 | ≤16.8 | ≤8.4 | ≤16.8 | ≤8.4 | ≤16.8 | ≤7 |
| 释放电压 (Release Voltage)5%-40%V | V | 0.6-4.8 | 1.2-9.6 | 0.6-4.8 | 1.2-9.6 | 0.6-4.8 | 1.2-9.6 | 0.6-3.5 |
| 开关电阻±8% Switching resistance ± 8% | Ω | 4.5 | 15 | 5.2 | 22 | 4.4 | 21 | 4 |
| 额定电流 Rated current | A | 100 | 400 | 150 | 150 | 150 | 150 | 150 |
| 瞬时最大电流 Instantaneous maximum current | A | 400 | 1500 | 800 | 800 | 800 | 800 | 400 |
| 循环寿命 cycle life | 次数 Cycle | 300000 | 300000 | 300000 | 300000 | 100000 | 100000 | 50000 |
| 连接材料 Connecting materials | 触点 Alloy | 银合金 Silver Alloy | 银合金 Silver Alloy | 铜触点 Cooper Alloy | 铜触点 Cooper Alloy | 铜触点 Cooper Alloy | 铜触点 Cooper Alloy | 铜触点 Cooper Alloy |
| 机械参数 Mechanical parameters | 电机型号 Motor Model | |||||||
|---|---|---|---|---|---|---|---|---|
| ZJWP100A-12V | ZJWP400A-24V | CZ1-C2-12V | CZ1-C2-24V | ARD1353-12V | ARD1353-24V | SW390-12LL-12V | ||
| M5 接线螺母 M5 Connection Nut | N.M | / | / | 1.7-2 | 1.7-2 | / | / | 1.7-2 |
| M8 接线螺母 M8 Connection Nut | N.M | 4.5-5.5 | / | 4.5-5.5 | 4.5-5.5 | 15 | 15 | 9.8- 14 |
| M10接线螺母 M10 Connection Nut | N.M | / | ≤10 | / | / | / | / | / |
| 安装支架 Mounting Bracket | N型，弧型 Curved | 弧型，直板型，V型，T型 Curved ,Flat | 弧型，直板型，V型，T型 Curved ,Flat | N型，弧型 Curved |
||||
| 储存和运输温度范围 Storage and transport temperature range | ℃ | -40 ℃~85 ℃ | -40 ℃~85 ℃ | -40 ℃~85 ℃ | -40 ℃~85 ℃ | -40 ℃~85 ℃ | -40 ℃~85 ℃ | -40 ℃~85 ℃ |
| 工作温度范围 Operating temperature range | ℃ | -40 ℃~60 ℃ | -40 ℃~60 ℃ | -40 ℃~60 ℃ | -40 ℃~60 ℃ | -40 ℃~60 ℃ | -40 ℃~60 ℃ | -40 ℃~60 ℃ |
| 防护等级 Ingress Protection | Class | IP65 | IP65 | IP67 | IP67 | IP54 | IP54 | IP54 |
